Fog Shower / High-pressure fog for air cooling
Refreshment for hot days – sustainable, hygienic, and portable
With our mobile mist showers, you can create a special highlight on hot days in no time at all.
The principle: water is atomized into a fine mist by special nozzles at a pressure of up to 70 bar. As it evaporates, it creates a noticeable cooling effect of up to 12 °C —pleasant, dry, and refreshing on the skin.
Your advantages at a glance
Effective cooling: Temperature reduction of up to 12 °C
Pleasant spray mist: no wet drops, just dry refreshment
Minimal water consumption: only approx. 2.5 liters per nozzle/hour
Maximum hygiene: UV light sterilization, automatic flushing system, regular disinfection, and hygiene monitoring
Easy to use: Start via touch sensor; runtime approx. 60 seconds. Alternatively: automatic operation with customizable programming.
Use in public spaces
Our high-pressure mist systems are specially designed for public areas.
Thanks to UV sterilization, a flushing system, and disinfection, the formation of biofilms, Legionella bacteria, viruses, or fungi is reliably prevented—for maximum safety and hygiene.
Flexible use
Rent or buy – tailored to your needs
Ideal for combining with our mobile vertical gardens (10–35 nozzles per system; can also be integrated into a combined solution)
Convenient maintenance and servicing via a maintenance contract or by your own staff trained by us
Custom control panel design available (with purchase only)
Mobile mist showers without garden modules
The next innovation for public spaces, events, or temporary installations.Model NP: Mist shower platform with seating and reclining area measuring 220 x 140 cm and sun shade, 16 mist nozzles.
Model NR: Mist shower platform with a seating and reclining area measuring 140 x 100 cm and a tension cable system connecting to a mounting point up to 10 m away. Also available as a looped system with multiple mounting points. Maximum cable length of 30 m and up to 35 mist nozzles possible.

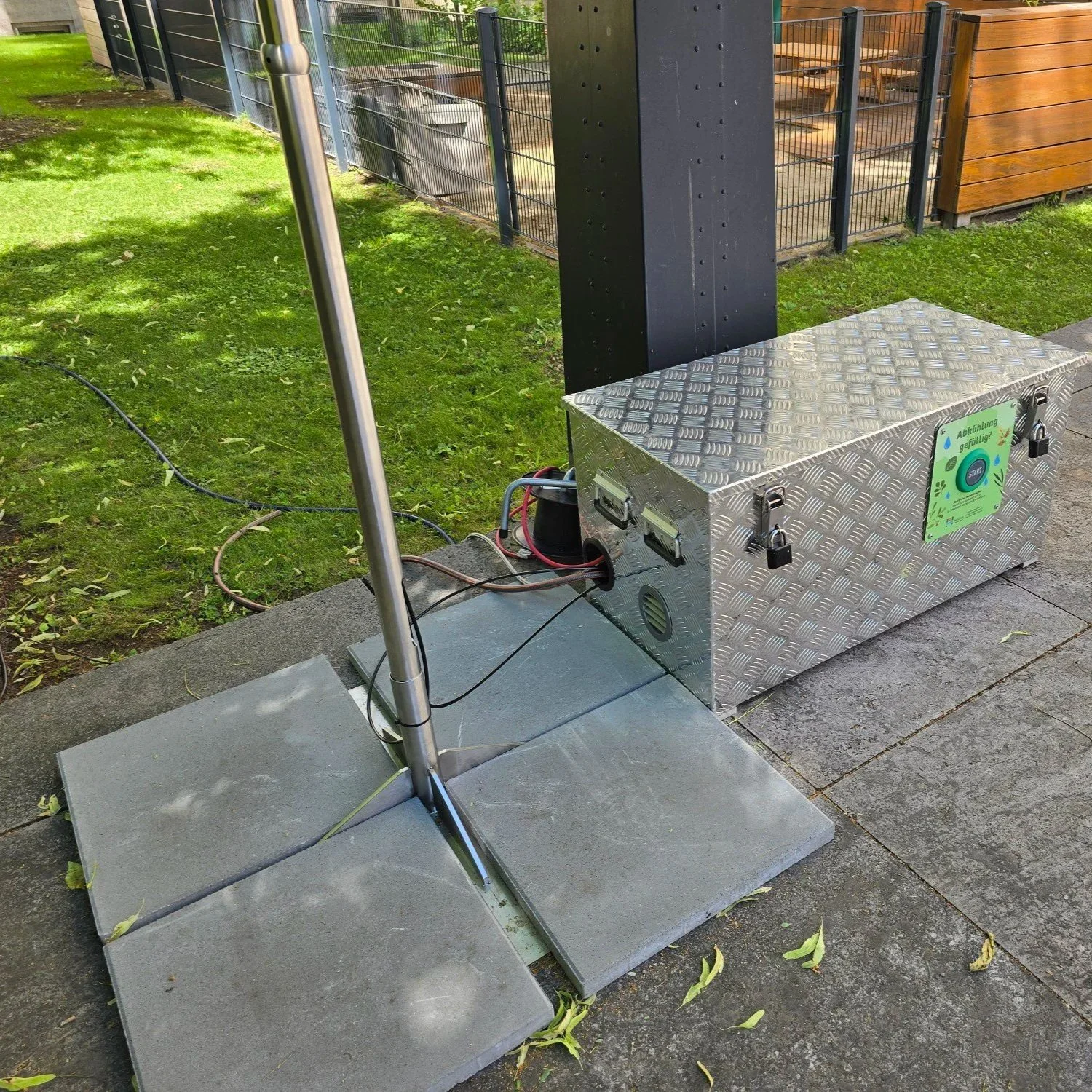

Model NK: Same as Model NR, but without a seating platform. The control unit and power unit are housed in a portable, wheeled case (LxWxH: 105 × 55 × 60 cm) . Mounting points for the tension cable system must be available or requested separately. Maximum cable length 30 m and up to 35 fog nozzles.
The cost-effective alternative for short-term use with quick setup and takedown options. Suitable only for secured or monitored areas, as no theft or vandalism protection is provided.
For this model, short-term rentals starting at 2 days with self-installation are also available!
👉 Interested?
Contact us now for a custom quote and get a refreshing solution for the summer!
Model NP with sun shade

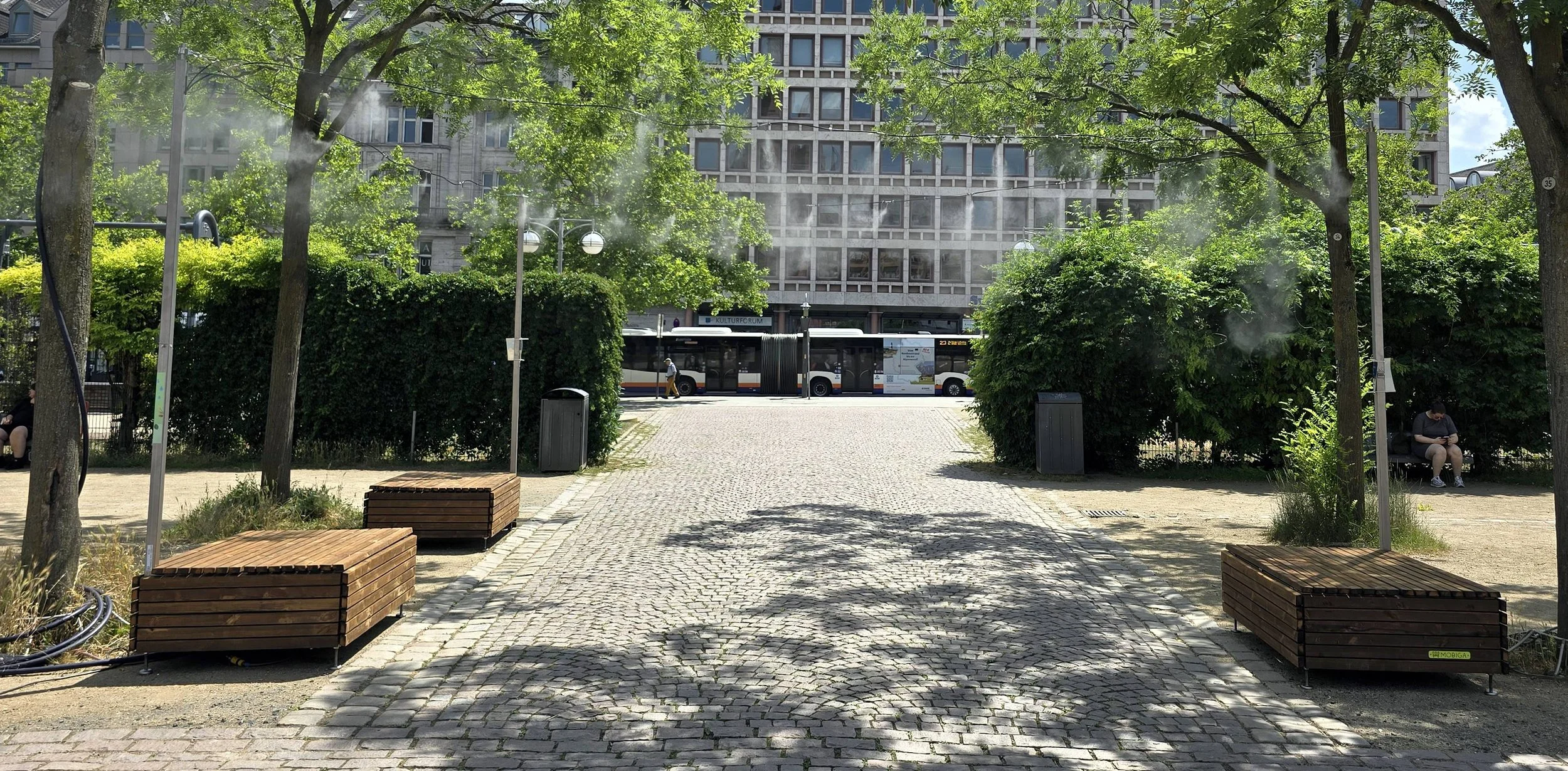

Model NR with two platforms and double tension cable construction (example configuration)

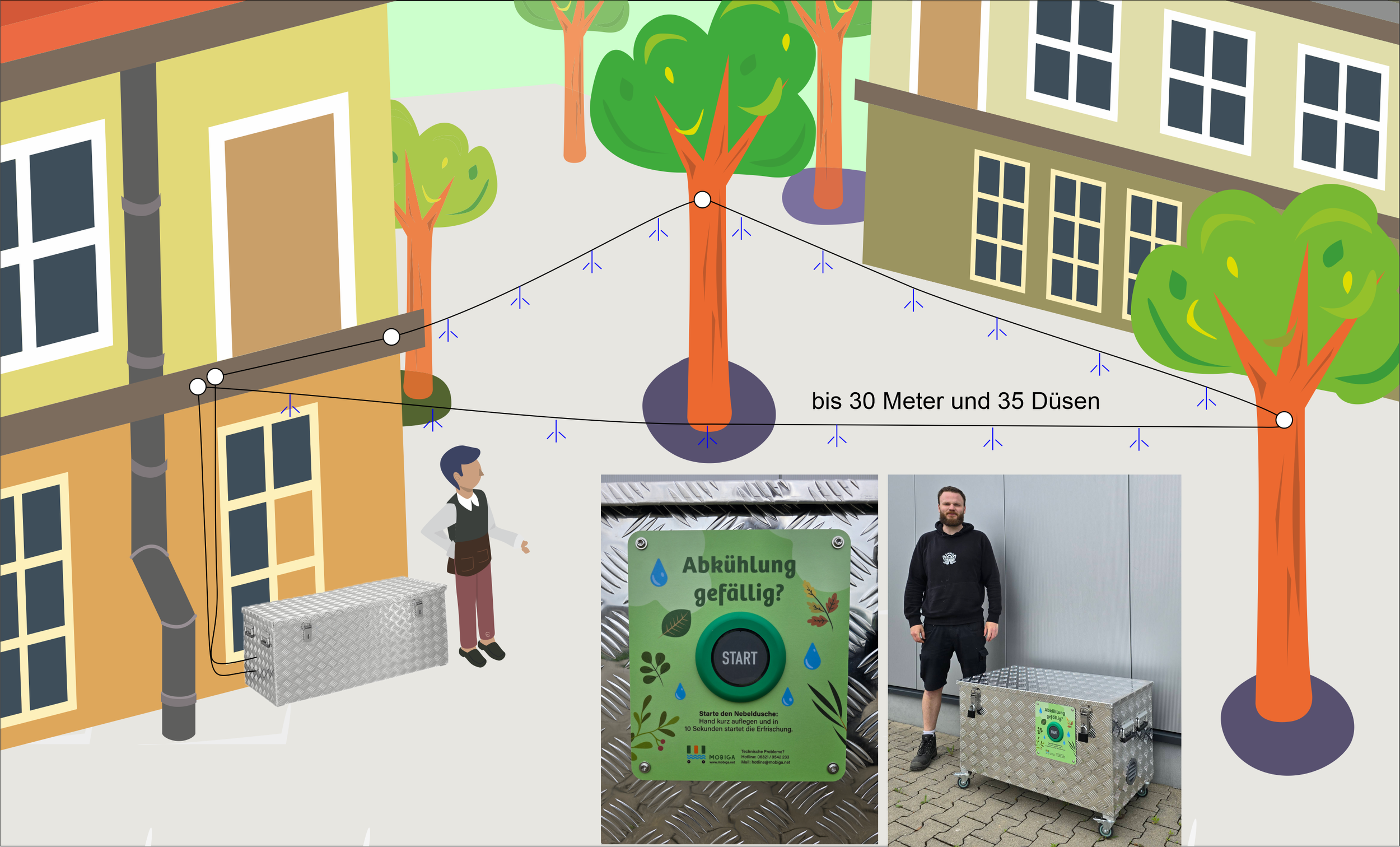

Model NK with individual tension cable construction
FAQ - Frequently asked questions
💶 Costs & Service
Where can I find the price list?
Our systems are customized to meet customer requirements. As material prices are currently subject to significant fluctuations and rental prices also depend on the number of items, rental period, scope of services, and season, we would be happy to provide you with a non-binding quote. → [Contact us now]
Who is responsible for maintenance?
Rental systems: Maintenance by us included.
Purchasing systems: Maintenance can be carried out by you after your staff has received training. Alternatively, we can provide maintenance as part of a maintenance contract.
⚙️ Technology & Operation
How does high-pressure mist cooling work?
A high-pressure pump forces water through fine nozzles at up to 80 bar. The mist evaporates in the air, drawing heat from the environment and noticeably cooling the air by up to 12 °C.
How is the spray mist controlled?
Via a touch sensor:
Start after approx. 10 seconds
Automatic stop after approximately 1 minute (individual configuration is possible)
Cooling effect lasts for several minutes
Individual intervals and operating times can be set as desired
What are the technical requirements?
Drinking water connection with system separator (pipe separator)
230-volt power connection within reach (in mobile gardens, the power unit is integrated into the MobiGa system)
How high are water and energy consumption?
Water: approx. 2.5 liters per nozzle per hour → approx. 45 liters/hour with 16 nozzles
Power: approx. 300 watts in continuous operation
Actual daily consumption (2 hours) including hygiene flushes: approx. 100 liters of water & 0.6 kWh of electricity
🩺 Health & Safety
Is the high-pressure spray mist harmless to health?
Yes.
Operation on a drinking water connection
UV filter for sanitizing the water
Automatic line flushing before each spray interval
Automatic intensive line flushing several times a day
Regular disinfectant rinses & nozzle replacement
Hygiene monitoring with rapid and laboratory tests (optional)
→ Result: The mist is hygienic and harmless—cleaner than normal breathing air.
📌 Important information
Please check in good time whether water and electricity connections are available at the place of use.
Further technical details can be found in our [installation instructions, available for download].
